Procurement & Construction

LED 6” Select Down Light

The Evolve® LED Medium Output Flood Light is our mid-lumen solution to efficiently illuminate building facade, flag poles, billboard signage and many more traditional flood applications. Designed to replace from 150W – 400W HID flood light solutions.

Features:

  • Easy Upgrade to LED
  • Installs in Less Than 5 Mins.
  • Reduce Power Consumption by 50%
  • Durable Aluminum 1 Piece Kit
  • 0-10V Dimmable Driver (100% – 10%)
  • Frosted Acrylic, Clear Acrylic, Or Polycarbonate Lens Options
  • ETL Listed
  • 5 Yr. Warranty
  • DesignLights Consortium® Premium Qualified Luminaire
Request Information
Category:

Features:

• High performance LED technology
• 0-10V dimming down to 10%
• Works for retrofit and new construction applications
• Compatible with insulated and non-insulated ceilings
• 90+ CRI
• Field selectable color temperature: 2700K /3000K /3500K /4000K /5000K
• Field selectable output: 10W/15W/22W

Applications:

Suitable for most commercial, industrial and institutional retrofit & new construction applications
• Retail
• Hospitality
• Office

Construction:

Durable thermoplastic and aluminum construction
• 19” of 3/8” flex cable for easy install into junction box

Mounting:

• Fits 6” to 7.4” diameter openings
• Spring action clips secure fixture to ceiling or existing frame
• 21.8” safety cable with clip included

Certifications:

• UL Listed for wet locations
• IP43
• RoHS compliant

Predicted L70 Lifetime:

• 50,000 hrs

Ambient Operating Temp:

• -20°C to 40°C

Warranty:

• 5 year limited system warranty – see www.LumenFocus.com for complete warranty terms and conditions

Ordering Guide:

example: DLS v2 6 SEL UV SW 9SEL

Series Size Output Voltage Reflector Trim CRI/CCT
DLS v2 6 SEL UV SW 9SEL
DLS v2 Select Down Light Version 2 6 6” SEL Field Selectable: Low (10W) Medium (15W) High (22W) UV 120-277 SW Smooth White 9SEL 90 CRI / Field Selectable CCT: 2700K 3000K 3500K 4000K 5000K
14 14” diameter HI High
VH Very High

Performance Chart:

Selectable Output Lumens Watts CRI
Low 822-924 10 93
Medium 1220-1384 15 93
High 1769-1822 22 93

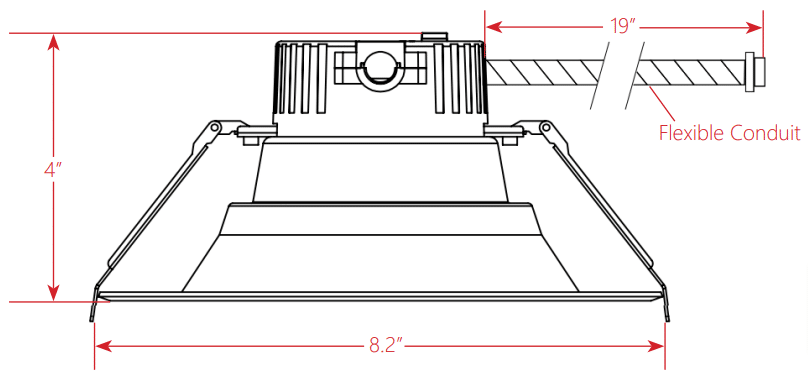

Schematic:

HBK 12

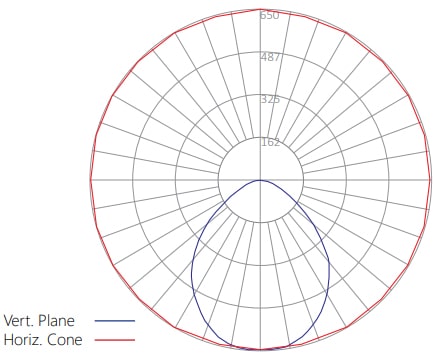

Photometric Data:

DLS v2 6 SEL UV SW 9SEL

Test No.: JG202002002Z
Luminaire Lumens: 1,384 lm
Luminaire Watts: 15.5 W
Efficacy: 89.5 LPW
Beam Angle: 93°
CCT: 5000K
